Features
| Weight | 210 g |
|---|---|
| Dimensions | 134.2 × 86.82 × 28 mm |
| Form-factor | Embedded |
| Display Size (inch.) | 5.0″ |
| CPU | Cortex-A8 |
| RAM | 512MB |
| FLASH | 4GB |
| Resolution | 800*480 |
| WiFi | External USB WiFi |
| USB | 1x USB 2.0 HOST, 1x USB 2.0 OTG customized to HOST or SLAVE |
| Ethernet | 1x LAN 100M |
| GPIO | 8x GPIO |
| RS485 | 2x RS485 |
| CAN | 1x CAN (can change to 2 channels) |
| RS232 | 2x RS232 |
| Buzzer | Yes |
| Power Consumption | 3.5W |
| Certification | CE |
| OS | Android, Angstrom,Debian, Linux?TI DVSDK? |
| External storage | TF (microSD) Card Slot |
| Touch Screen | Capacitive, Resistive |
| Audio | 3.5mm Output/input Connector |
| Power Input | 6~36V DC |
| Working Temperature | -20°C ~ 70°C. |
| Mounting Method | Embedded Mounting |
Hardware features

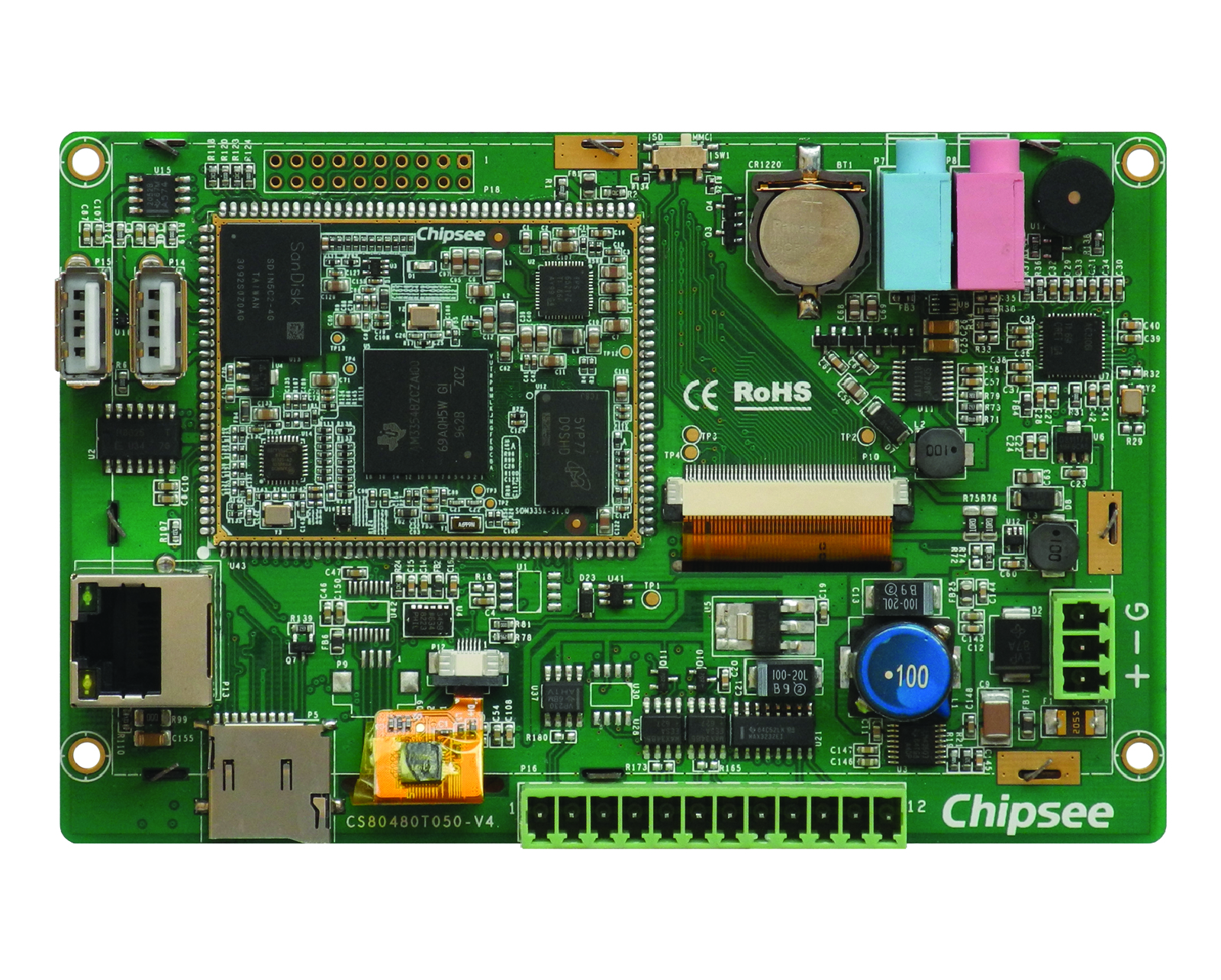

The EPC-A8-50-C has several expansion connectors on the back side – 2 USB 2.0 connectors, 1 LAN connector, 1 CAN connector, 2 RS485 connectors, and 2 RS232 connectors. It also features a 3.5mm audio connector.
Please note a USB WiFi/Bluetooth module can be added. Contact us for more information.
The CAN, RS485, RS232 connector is a 12 Pin 3.81mm screw terminal connector (as you can see from the image).
Since this display has 4 UART channels, they can be configured as RS232 or RS485. Please contact us if you require a different configuration.
The speed of the RS232 and the RS485 port is up to 115200 Baud.
The EPC-A8-50-C has one channel 100Mb Ethernet port and one TF (uSD) card connector. This device supports a TF card up to 32GB.
When it comes to audio capabilities, the EPC-A8-50-C has one 3.5mm Output/input connector and a 2W internal speaker.
The typical power consumption is 3.5W.
System-on-Module
This System-on-Module makes it possible to integrate a whole computer into a device, significantly simplifying the customization of the device. This is why we are able to offer fast turnaround customization of all our products.
At the core of each Chipsee product lies a System-on-Module. This means all the products share the same core. It makes your application easily upgradable – without needing to rewrite a single line of code your application is upgraded, thanks to the same System-on-Module.
This product features the CS-SOM335X-V3 System-on-Module, based on the AM3354 ARM Cortex-A8 processor.
The AM3354 microprocessor is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS).
The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGX™ Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects.
Display and Touchscreen
EPC-A8-50-C features a 5’’ display with an 800*480pixel resolution, and a 5-point capacitive touch screen. 5-point capacitive touchscreens offer a stable and accurate control over the device, as well as great image clarity.
When it comes to the viewing angle, the screen offers various angles: top, bottom, left, and right view.
Software and OS
This product comes with a pre-installed OS of your choice. Please use the drop-down menu to choose the one you need, and we’ll pre-install it for you.
It supports the following operating systems:
- Android 4.1
- Linux with Qt 4.8
- Linux with Qt 5.5
- Debian 7.4
- Debian 8.4
- Angstrom v2012.12
